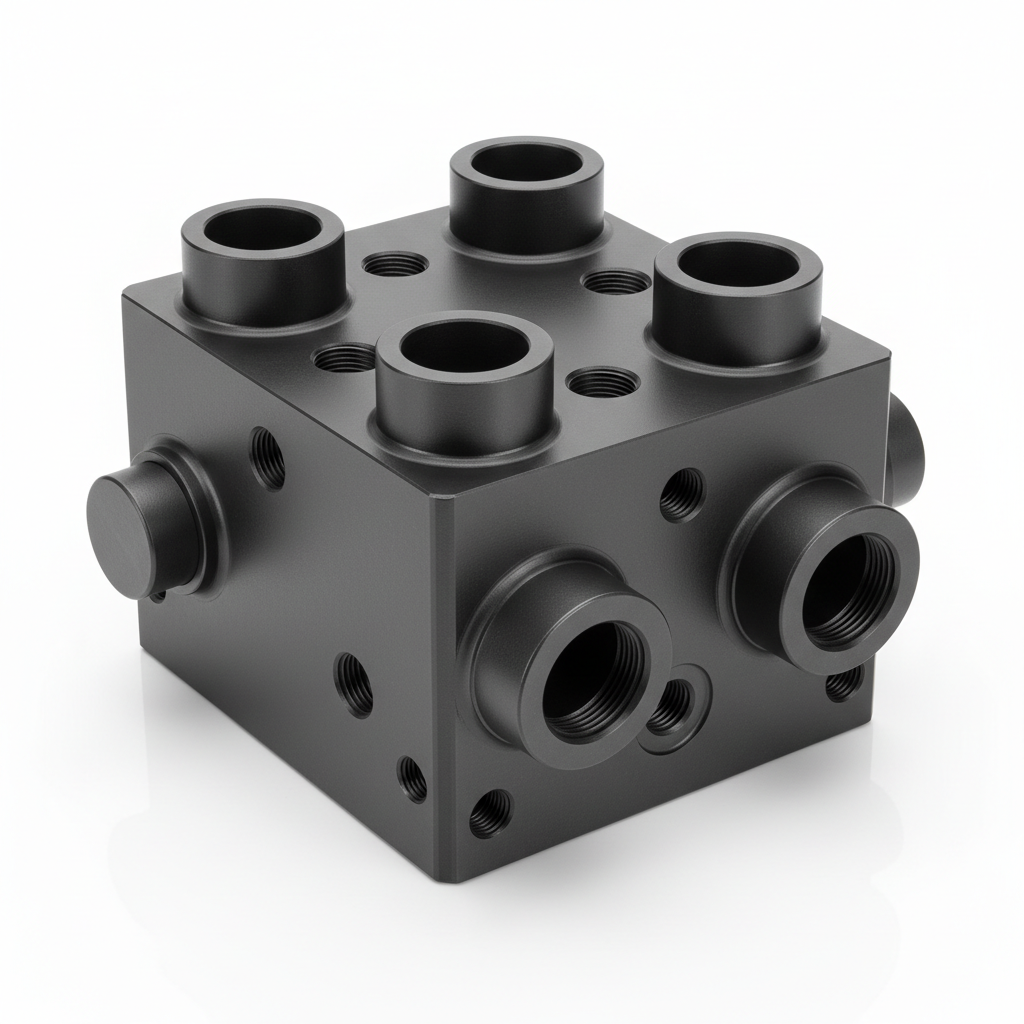

Hydraulic System Manifold Block — 7075-T6 Aluminum, 5-Axis CNC Milled, Hard Anodized
LouTech’s 5-axis CNC-milled hydraulic manifold blocks are machined from 7075-T6 billet (UTS 83 ksi) with internal porting networks, SAE straight-thread O-ring port bosses, and precision sealing bore finishes of 16 µin Ra or better — Type III hard anodized inside and out (0.002" per side), pressure-tested at 1.5× MOP before shipment, and delivered with full AS9100 first-article inspection report and hydrostatic test certificate for use in flight-critical landing gear and flight control hydraulic circuits.
Clinical Build Data
| Property | Value |
|---|---|
| Material | Aluminum |
| UTS | 83 ksi |
| Internal Porting | Custom porting network per customer drawing |
| Port Standard | SAE Straight-Thread O-Ring Port Bosses |
| Sealing Bore Finish | 16 µin Ra or better |
| Finish | Type III Hard Anodize — 0.002" per side |
| Proof Test Pressure | 1.5× MOP hydrostatic proof test — certified |
| Documentation | AS9100 FAI Report + Hydrostatic Test Certificate |
| CAGE Code | LouTech LLC — Chino, CA |
