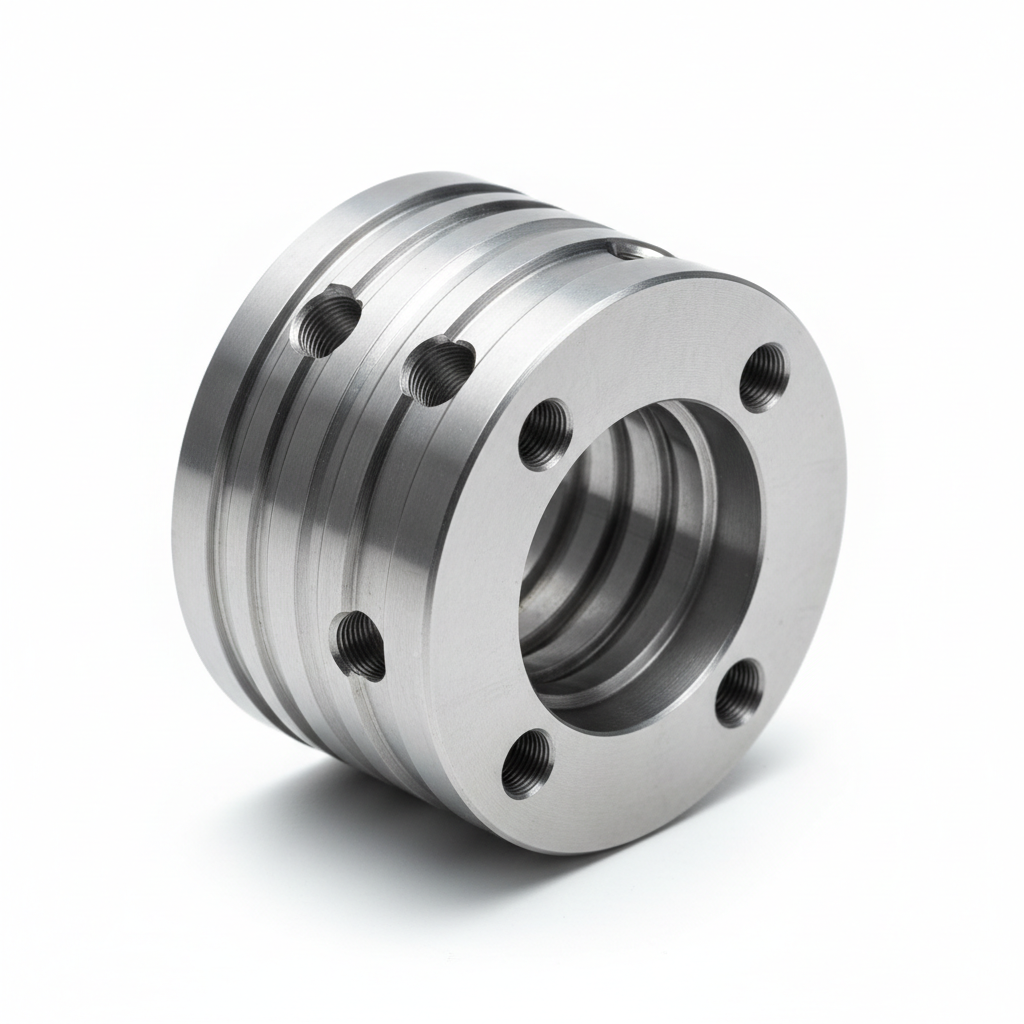

Precision Drivetrain Coupling Sleeve — 303 Stainless Steel, 11-Axis Mill-Turn
LouTech machines drivetrain coupling sleeves on 5-axis double-turret double-spindle 11-axis CNC mill-turn centers — enabling complete turned, milled, drilled, and splined features in a single setup to eliminate datum shift between operations — holding spline pitch diameter tolerances to ±0.0005" and runout to ≤0.0005" TIR on 303 stainless steel (passivated), serving aircraft accessory gearbox, actuator, and turboprop drivetrain coupling applications.
Manufacturing Parameters
| Property | Value |
|---|---|
| Material | 303 Stainless Steel |
| Spline Tolerance | ±0.0005" pitch diameter |
| Runout (TIR) | ≤0.0005" TIR |
| Finish | Passivated per AMS-QQ-P-35 |
| Manufacturing Process | 11-Axis CNC Mill-Turn (double-turret, double-spindle) |
| Setup Philosophy | Complete part in single setup — eliminates datum shift |
| Applicable Standards | AS9100 |
| CAGE Code | LouTech LLC — Chino, CA |
